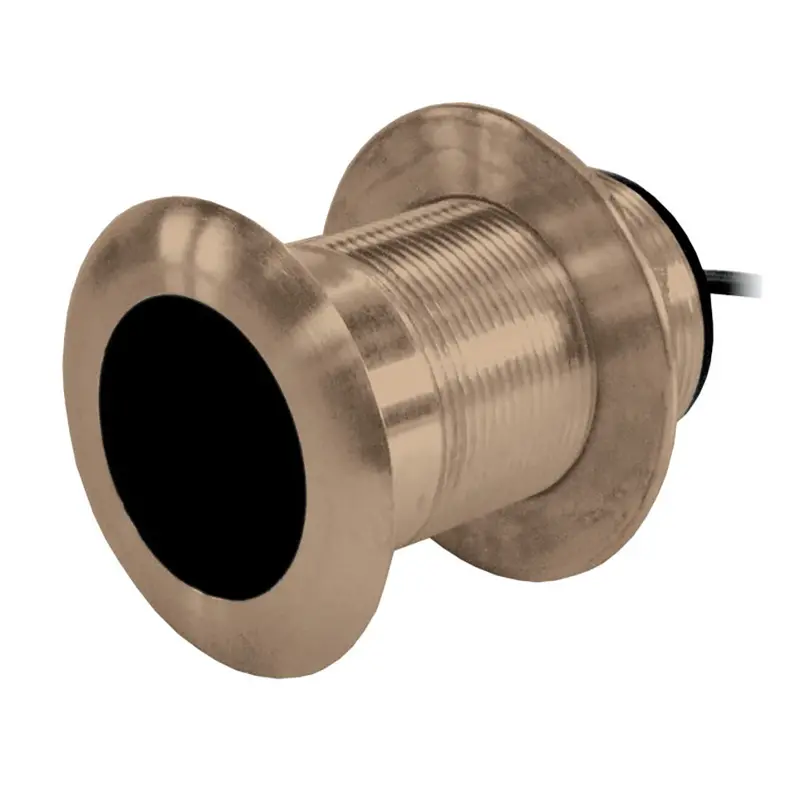

Airmar B117 Bronze Thru-Hull Transducer – Humminbird 9-Pin Compatible

Description

B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug – 7-Pin

The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5mm (3/16″) extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.

Features

• Industry standard for low-profile transducers
• Depth and temperature
• Good target detail in shallow-water at 200 kHz and good deep-water bottom tracking at 50 kHz
• Right angle cable exit offers low headroom and protection when transducer is stepped on
• Included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Housings are ABYC H-27 compliant
• Optional temperature sensor
• Bronze transducer housing
• Boat Size: 8M (25′) and up

Specifications:

• Weight: Bronze – 0.9 kg (2.0 lb)
• Hull Deadrise: Up to 8°
• Acoustic Window: Urethane
• Hole Diameter: 51mm (2″)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Mounting Style: Thru-Hull
• Temperature: Yes

Quick Guide (pdf)
Owner’s Manual (pdf)
Brochure (pdf)
