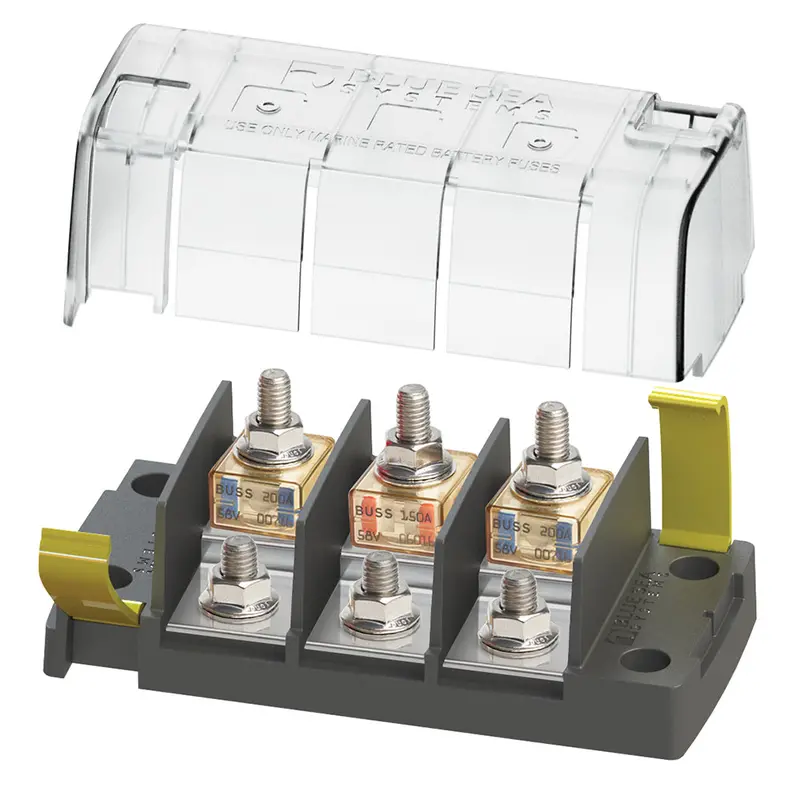

Blue Sea 5194 MRBF Surface-Mount 3-Circuit Fuse Block – Independent Inputs

Description

Surface Mount 3 Circuit Fuse Block – Independent Source

• Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
• The independent source fuse block (5194) is ideal for 3 output battery chargers

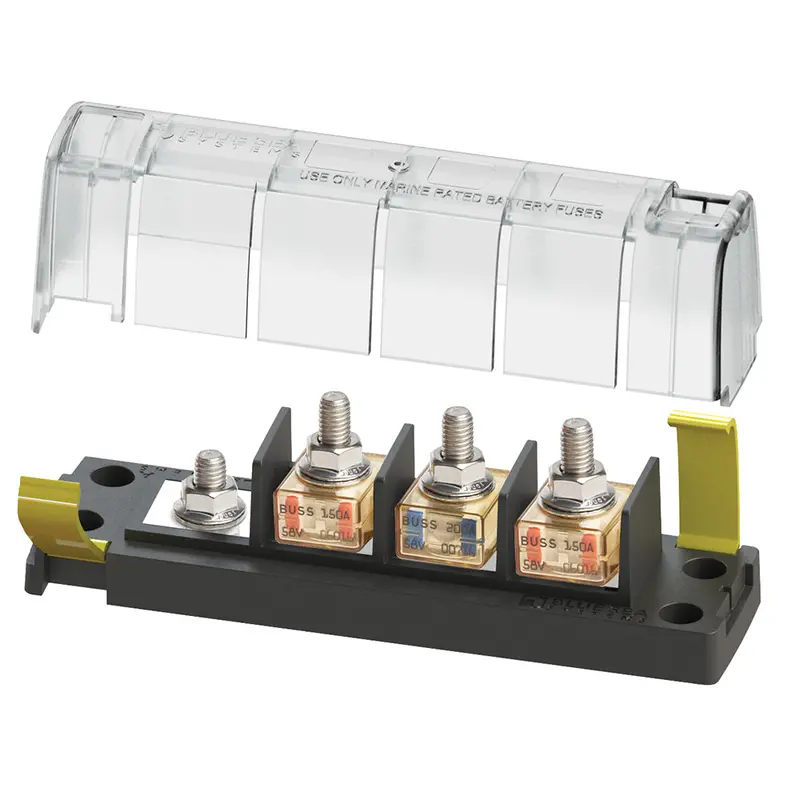

• The common source fuse block (5196) provides 3 loads from a single source
• Clip-on cover insulates terminal connections
• Versatile wiring options allow all wires to come out a single side
• Label recesses for easy circuit identification
• One-piece stainless flange nuts ensure safe and secure connections

Specifications

• Ignition Protected: Yes
• Maximum Amperage: 240 per circuit
• Maximum Voltage: 58v DC
• Maximum Torque: 100 in-lb
• Terminal Stud Size: M8 (5/16″-18)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Fuse Type: Terminal
• Type: Fuse Blocks
• Box Dimensions: 4″H x 7″W x 11″L WT: 1.4 lbs
• UPC: 632085051945
