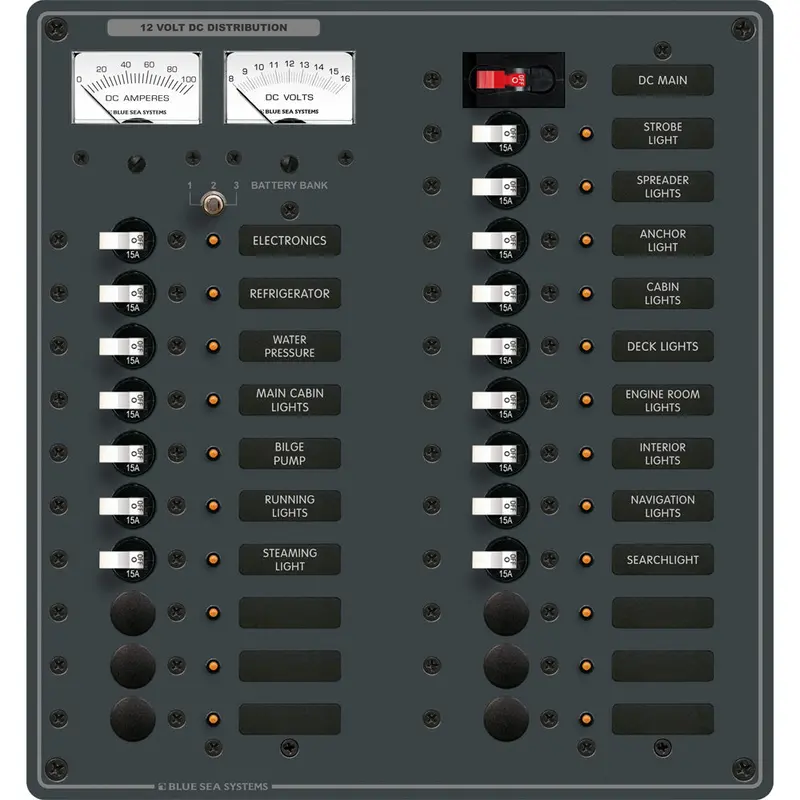

Blue Sea 8379 DC Main + 20-Circuit Breaker Panel

Description

Main + 20 Positions

(14) 15A Single Pole Circuit Breakers

(1) 100A C-Series Main Circuit Breaker

(1) 8248 DC Digital Multimeter w/ Alarm

White Switches
Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions
• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8″ aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included
• Includes set of 30 common Large Format Panel Labels
• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 20
• AC/DC: DC
• Voltage: 12/24v
• Box Dimensions: 7″H x 14″W x 22″L WT: 6.3 lbs
• UPC: 632085083793

Quick Guide (pdf)
Owner’s Manual (pdf)
Brochure (pdf)
