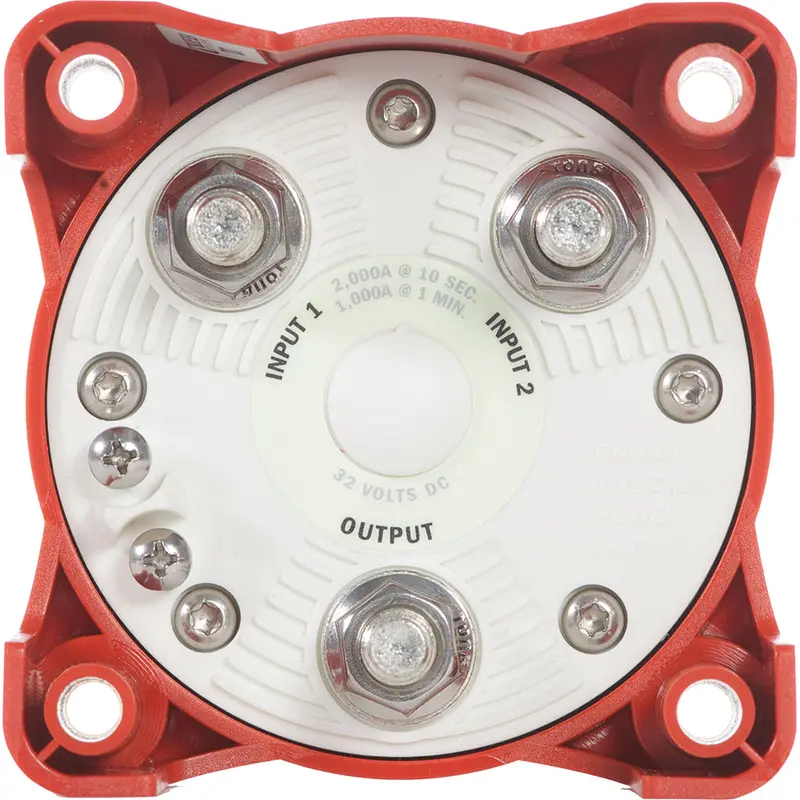

Blue Sea E-Series 3-Position Battery Switch with Alternator Field Disconnect – Model 11001

Description

e-Series Selector 3 Position Battery Switch with AFD
AFD: Yes
Battery Combiner: No
Features:

• Make-before-break contact design allows switching between battery banks without power interruption
• CE Marked
• Ignition protected-safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
• 7/8″ (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AFD: Yes
• Positions: 3
• Box Dimensions: 3″H x 7″W x 9″L WT: 1.15 lbs
• UPC: 632085110017

Brochure (pdf)
