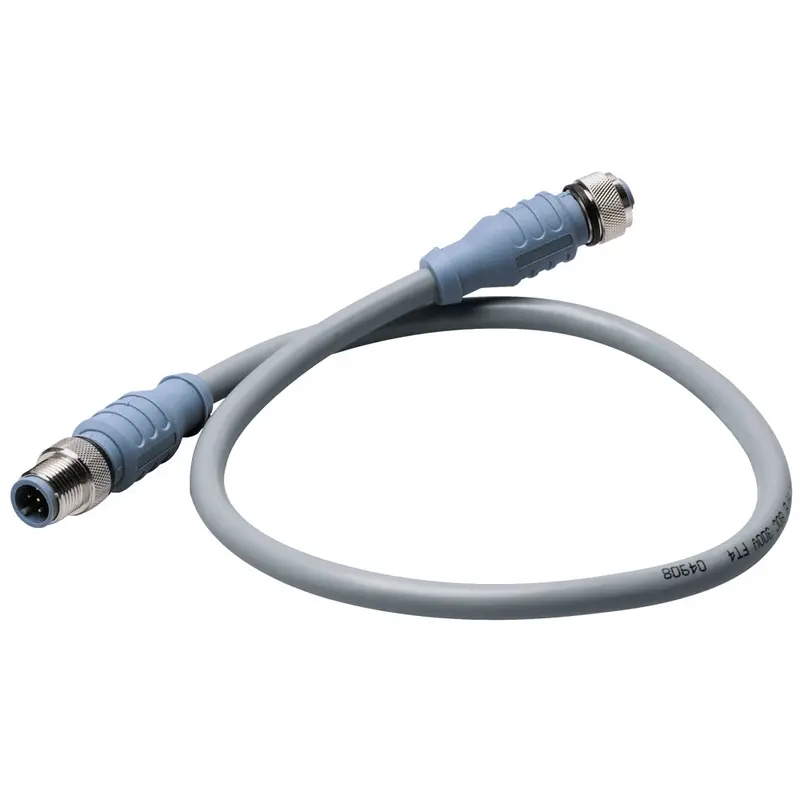

Maretron Micro Grey Double-Ended Cordset — Male to Female (0.5 Meter)

Description

Micro Double-Ended Cordset – 0.5M

Mechanical

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59″ Electrical
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V Cable
• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
• Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
• Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40° C to 80° C to (-40° F to 176° F)Approvals
• (Cable) UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4
• NMEA: NMEA 2000 Approved

Specifications:

• Data Interface: NMEA 2000
• NMEA 2000 Connectors: Backbone/Drop Cables
• Box Dimensions: 1″H x 5″W x 5″L WT: 0.1 lbs
• UPC: 873804001500
