Raymarine B60-12 Tilted Element Transducer for DSM250/DSM30/DSM300/DSM300G/CP300 – E66086

Description

B60 Tilted Element™ 12°
12° titled version is designed for 8° – 15° deadrise angles
For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300

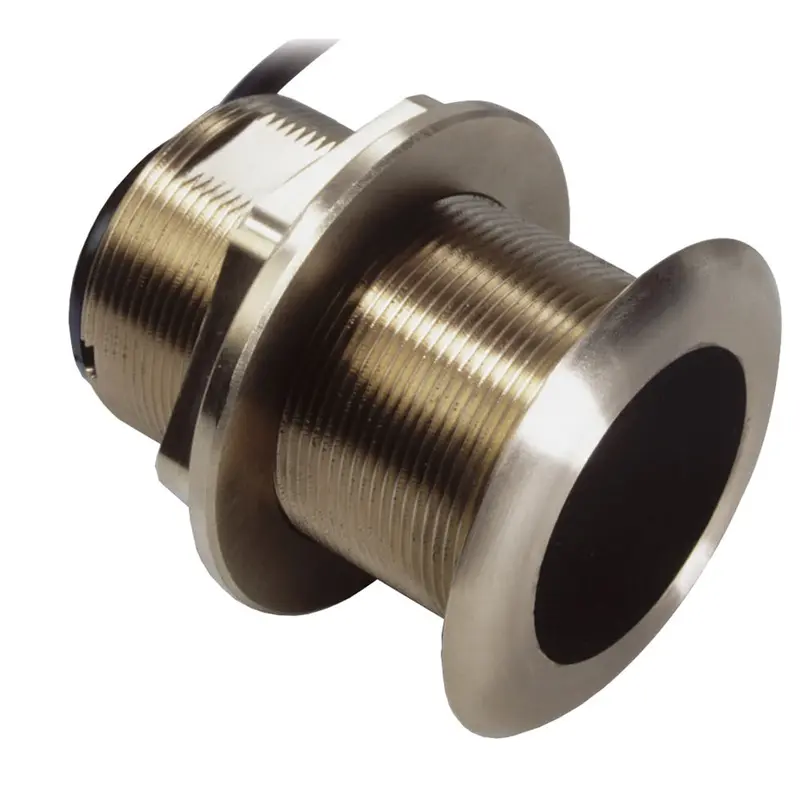

The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16″) extending outside of the hull.
Features:

• Depth/Temp
• 50/200 kHz
• 600w RMS
• Mid-performance
• Bronze

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 33′
• Box Dimensions: 4″H x 8″W x 11″L WT: 5 lbs
• UPC: 723193660867

Owner’s Manual (pdf)
Brochure (pdf)
