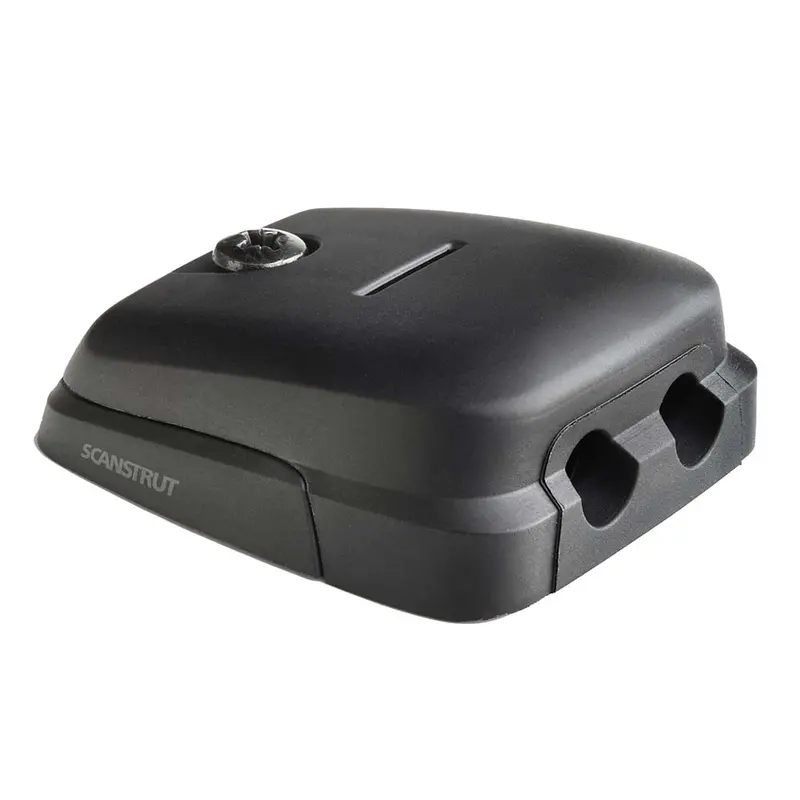

Scanstrut DS-HD6-BLK Horizontal Dual Cable Seal – Black Finish

Description

DS-HD6-BLK Horizontal Double Cable Seal – Black

The best compact horizontal double-entry cable seal

The DS-HD6-BLK double horizontal cable seal was designed to eliminate the time-consuming and sub-standard routing of solar panel cables. This seal helps you achieve a sleek, easy-to-fit, and 100% watertight installation every time. Perfect for routing two solar panel cables externally to internally on the roof of boats.

This horizontal double-entry cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antenna, and navigation light cables.  A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting.

Features:

• Watertight installation – 100% waterproof with an IPX68 rating.
• Installs two (2) cables.
• Easy and reliable installation – each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
• The low-profile construction is impact resistant and provides extra protection from water.

Technical Specifications:

• Fits cable size (diameter) up to  – .23″ (6 mm)
• Height – .87″ (22 mm)
• Width – 2.13″ (54 mm)
• Color – Black
• Orientation – Horizontal
• Material – Plastic

In the Box:

• Cable seal
• Mounting hardware
• Installation manual

*Sold as an Individual

Specifications:

• Type: Deck Seal
• Box Dimensions: 2″H x 4″W x 6″L WT: 0.1 lbs
• UPC: 5060114797987

Quick Guide (pdf)
