Scanstrut Horizontal Double Cable Gland – Black

Description

Horizontal Double Cable Seal – Black

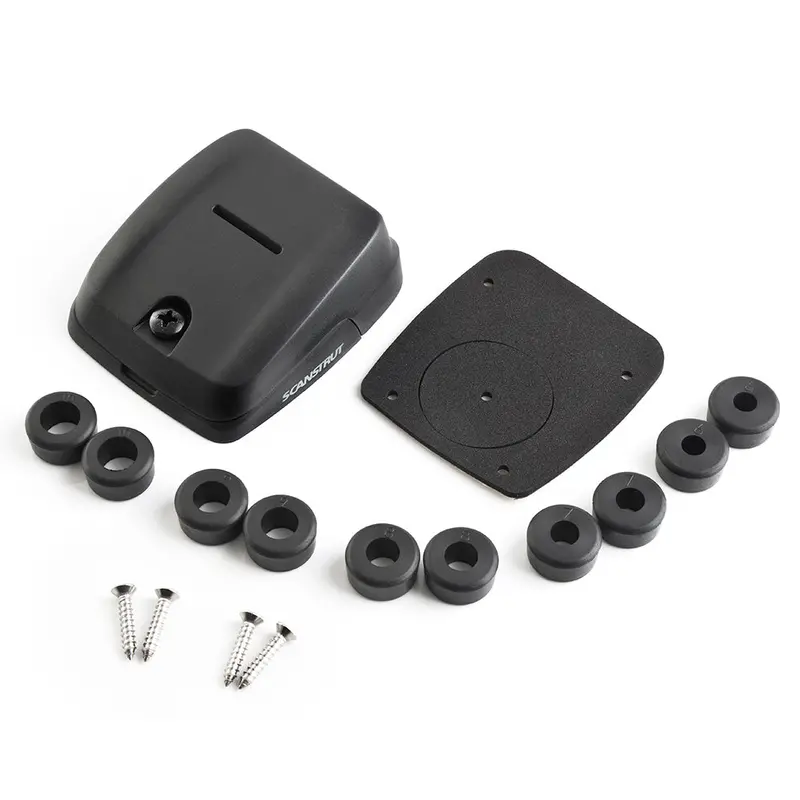

The DS-HD10-BLK double horizontal cable seal was designed to eliminate time-consuming and sub-standard routing of cables for rooftop lights and electronics. The seal helps you achieve a sleek, easy-to-fit, and 100% watertight installation every time. Perfect for routing two cables externally to internally on the roof of boats. Its low-profile design provides the best water ingress protection in class.

Features:

• Designed for two cables
• IP68 watertight seal
• Compact footprint – just 66.5mm (2.61”) W / 75.1mm (2.95”) L / 28.5 mm (1.12”) H
• Easy-fit cable routing that cuts down your installation time through wood, metal, and GRP
• Black high-impact plastic
• Includes 316 stainless steel fixings and a waterproof 3M gasket
• The low-profile construction is impact-resistant and provides extra protection from water
• The materials have been selected to be UV- stable and hard-wearing
• No messy sealant on bungs

Install 2 cables – select any combination:

• 6mm x 2
• 7mm x 2
• 8mm x 2
• 9mm x 2
• 10mm x 2
• Blank x 2

Specifications:

• Type: Deck Seal
• Box Dimensions: 1″H x 4″W x 9″L WT: 0.4 lbs
• UPC: 5060114798243

Brochure (pdf)
