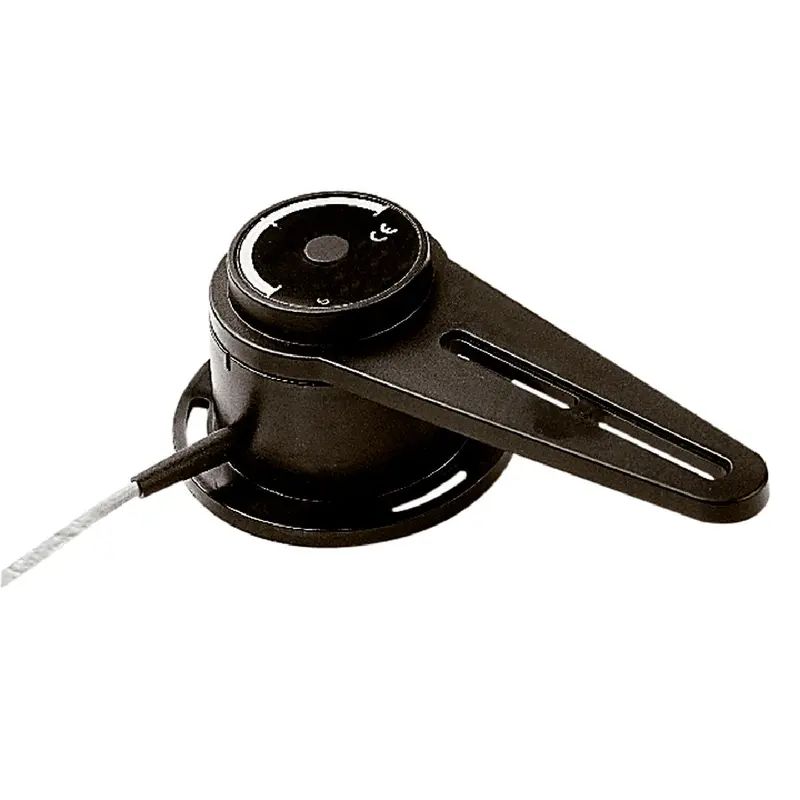

Simrad RF40 Rudder Feedback Unit with 15-Meter Cable – 000-14439-001

Description

RF40 Rudder Feedback Unit with 15M Cable

Rudder Feedback for Smooth and Accurate Steering

The RF40 is a medium-duty rudder feedback unit for use with NAC-1 and NAC-2 autopilot systems. Rudder feedbacks measure and report actual rudder angle to your autopilot computer, enabling precise rudder control for smooth and accurate steering.

Direct Connection for Simple Plug-and-Play Installation

The RF40 is designed for direct connection to NAC-1 and NAC-2 autopilot computers, with variable voltage output and an attached 15 metre (49 foot) cable with plug-and-play connector. The connector can be easily removed for use in other applications. Its extended cable and direct connection make the RF40 an ideal alternative to NMEA 2000® connected sensors, such as the RF25, in situations where it is impractical or otherwise unnecessary to extend a vessel’s NMEA 2000® network within reach of the rudder.

Specifications:

• Type: Parts
• Box Dimensions: 3″H x 5″W x 16″L WT: 1.9 lbs
• UPC: 9420024172070
