Uflex ROTECH 14-Foot Rotary Steering System – Cable, Helm, and Bezel Included

Description

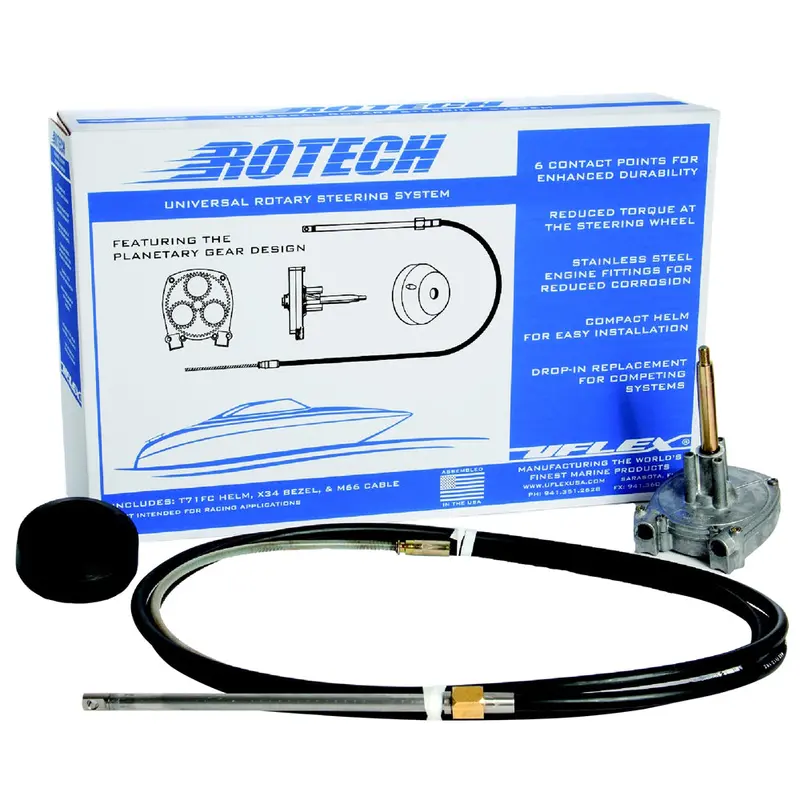

ROTECH™ STEERING SYSTEM
ROTECH – X14
T71FC – helm
X34 – 90° bezel
M66 – 14′ steering cable
UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX:
A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.
FEATURES AND TECHNICAL SPECIFICATIONS:

• Fast connect, simple installation
• All stainless steel cable output ends
• Corrosion resistant materials
• Particulary suitable where clearance is limited
• Standard 3/4″ tapered shaft
• Lock-to-lock steering wheel turns: approx. 3,8
• Stroke: 9″ (228 mm)
• Maximum allowable steering wheel diameter: 16″ (406 mm)
• Minimum steering cable bend radius: 7.9″ (200 mm)
• Minimal feedback
• Compact for mounting
• T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat
• For boats faster than 50 mph the twin cable steering system T72FC is recommended
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards

**The wheel is not included

Specifications:

• Cable Length (Feet): 14′
• Box Dimensions: 2″H x 5″W x 5″L WT: 23.25 lbs
• UPC: 702755019619
