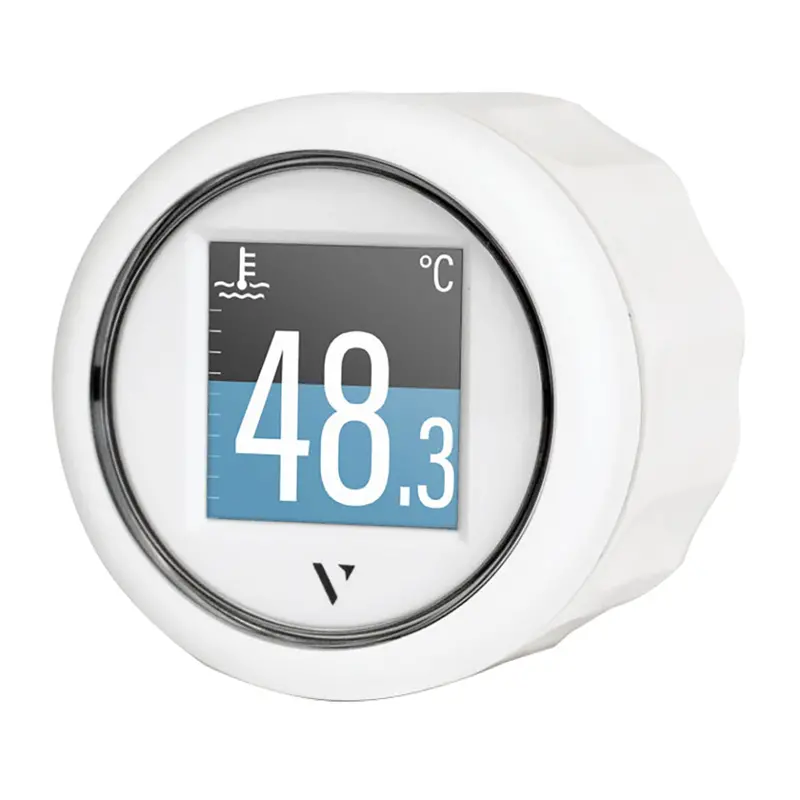

Veratron 52 mm (2-1/16″) J1939-Compatible Viewline Flex Gauge – White Dial

Description

52mm (2-1/16″) ViewLine Flex Gauge – J1939 – White

Veratron’s VL Flex 52 – J1939 was designed to meet the rigorous demands of commercial use. Supporting a broad range of sensors, the all-in-one round gauge is singularly unique in that it can display two sets of diesel engine data simultaneously and is easily configured using a mobile device and the companion Veratron app.

The VL Flex 52 – J1939 supports input from analog sensors as well as J1939 and LIN 2.0. The simple but effective graphic design can be set up in a single or dual layout, pulling from up to 30 sets of data. It can display a large numerical value and colored bar graph that are viewable in any light condition due to its sun-readable PMMA lens with anti-glare.

*VL Flex Configurator App (Android or iOS)  has to be downloaded – no charge

Supported Configurations:

• Wheel Speed – Engine Load – Fuel Level – Oil Level – Oil Pressure – Boost Pressure – Coolant Pressure
• Coolant Temp – Battery Current – Brake Pressure – Gear Oil Level – Gear Oil Pressure – Battery Potential
• Air Temperature – Exhaust Temperature – Oil Temperature – Gear Oil Temperature – Fuel Rate
• Fuel Economy – Engine Speed – Odometer – Engine Hours – Total Fuel – Clock – DEF/BLUE Level
• Battery SOC/SOH – Battery Temperature – Battery Autonomy

Features:

• 1.44” sun-readable color TFT display
• J1939 Interface
• Front lens with anti-glare and anti-fog treatments
• 52mm (2-1/16″) mounting diameter

In the Box:

• VL Flex J1939
• 52mm Mounting SpinLock
• 8 Pole Cable
• Safety Instructions

*Sold as an individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Box Set: No
• Gauge Size: 2-1/16″
• Gauge Type: Multifunction
• Series: ViewLine
• Voltage – Input Range (Volts): 12/24v
• Box Dimensions: 3″H x 3″W x 4″L WT: 0.3 lbs
• UPC: 7640190290008

Owner’s Manual (pdf)
Brochure (pdf)
