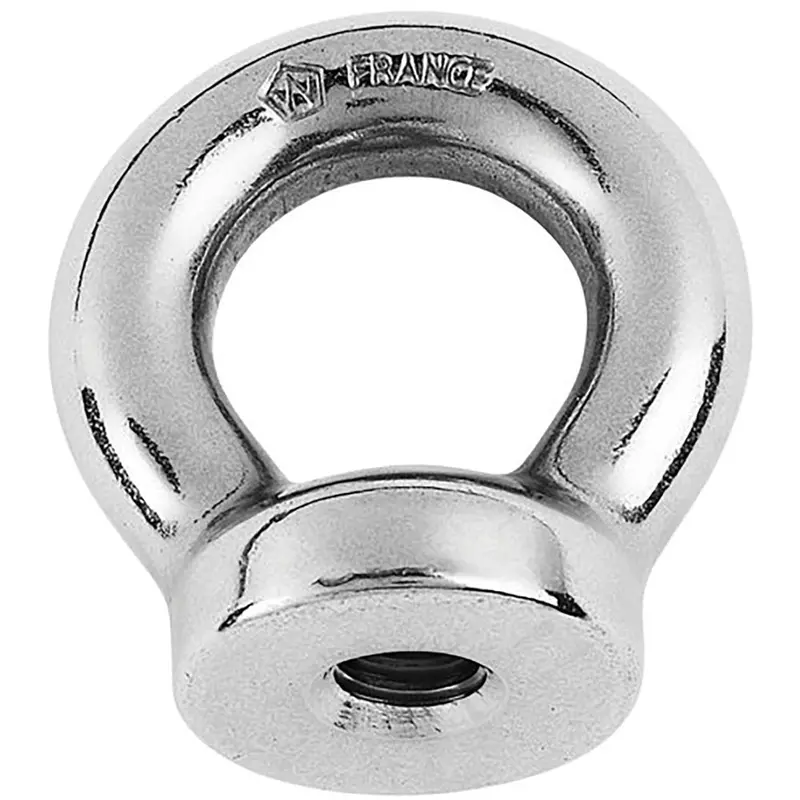

Wichard 12 mm Eye Nut with M14 × 200 mm Thread

Description

12mm Eye Nut – Thread M14 x 200mm

Features:

• A complete range of single-piece forged products for fastenings applications
• Outstanding breaking loads
• Available in different sizes

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 19840 / (kg) 9000
• Weight: (lb) 0.377 / (g) 171

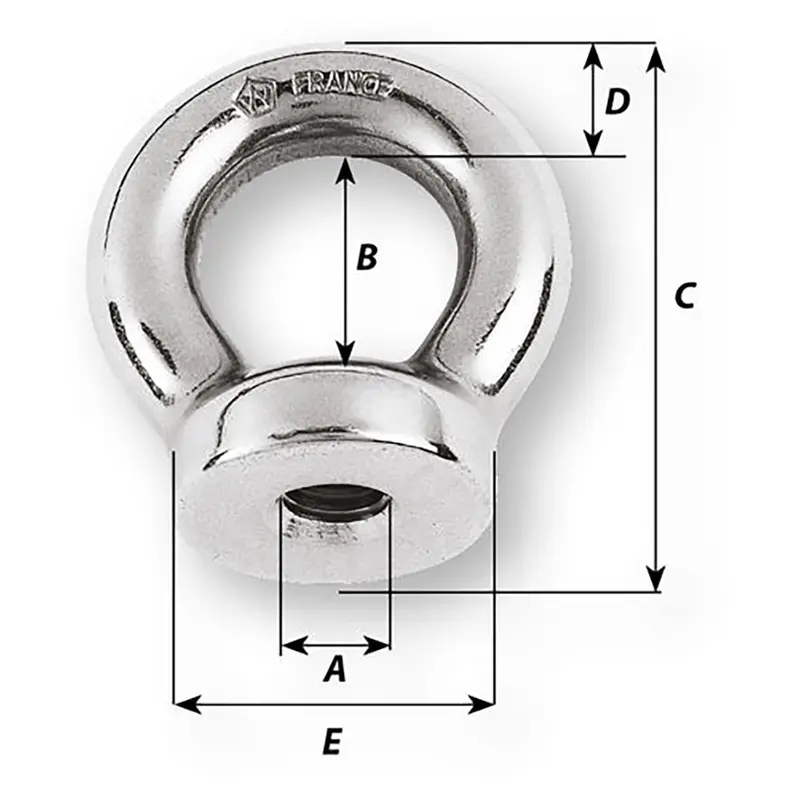

Dimensions:

• A: (mm) M14 x 200
• B: (inch) 1 1/16″ / (mm) 27
• C: (inch) 2 13/64″ / (mm) 56
• D: (inch) 15/32″ / (mm) 12
• E: (inch) 1 11/32″ / (mm) 34

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
