Wichard 12mm Self-Locking D-Shackle with Allen Head Pin – 15/32″ [1306W]

Description

Self-Locking Allen Head Pin D Shackle – 12mm Diameter – 15/32″

Features:

• Self-locking shackle with allen head pin D forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Ideal to link chains and anchor
• On the halyard, avoids damaging the sails
• To be used when the clutter is reduced

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 4580 / (kg) 2080
• WLL: (lb) 2640 / (kg) 1200
• Breaking load: (lb) 13220 / (kg) 6000
• Weight: (lb) 0.412 / (g) 187

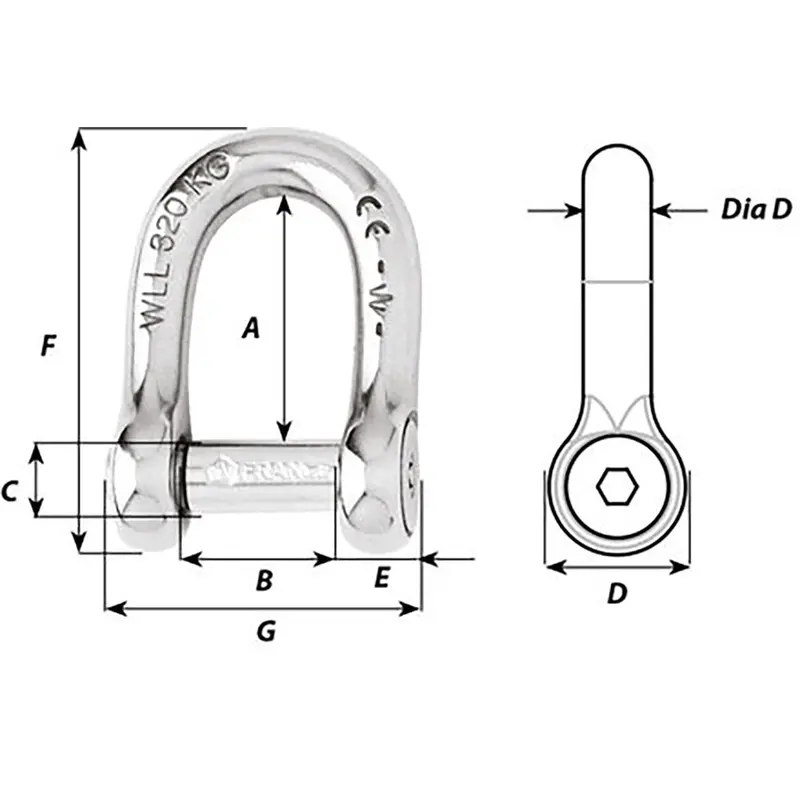

Dimensions:

• A: (inch) 1-21/32″ / (mm) 42
• B: (inch) 1-1/16″ / (mm) 27
• C: (inch) 15/32″ / (mm) 12
• D: (inch) 15/16″ / (mm) 24
• D diameter: (inch) 15/32″ / (mm) 12
• E: (inch) 25/64″ / (mm) 10
• F: (inch) 2-7/8″ / (mm) 73
• G: (inch) 1-59/64″ / (mm) 49

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
