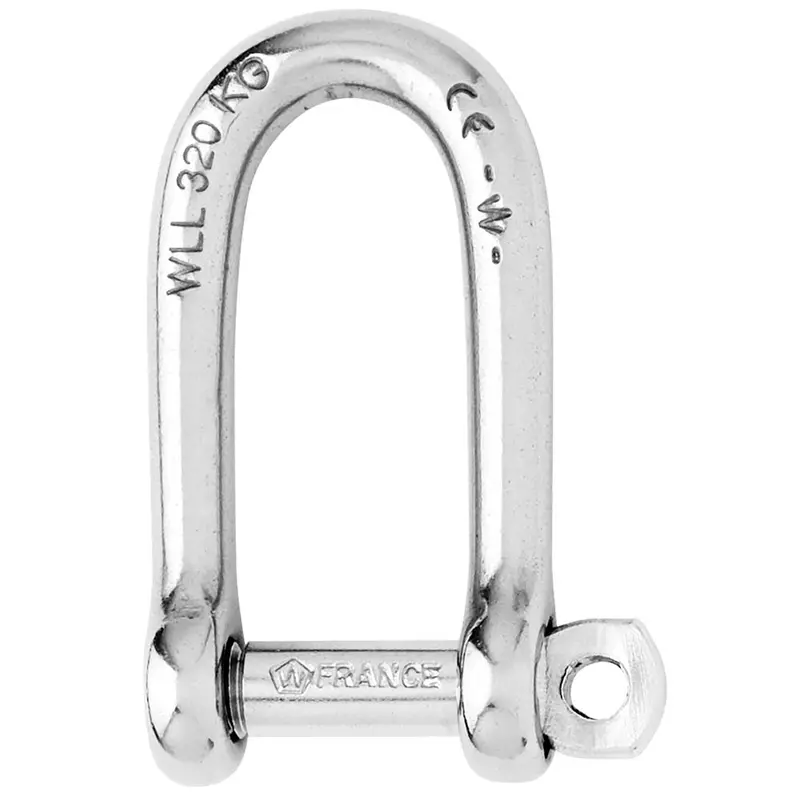

Wichard 6mm Self-Locking Long D-Shackle – 1/4″ Size, Model 1213W

Description

Self-Locking Long D Shackle – Diameter 6mm – 1/4″

Features:

• Self-locking long shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications
• CE Marking and batch number

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head…

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1320
• WLL (lb) 700
• Breaking load (lb) 3520
• Weight (lb) 0.06

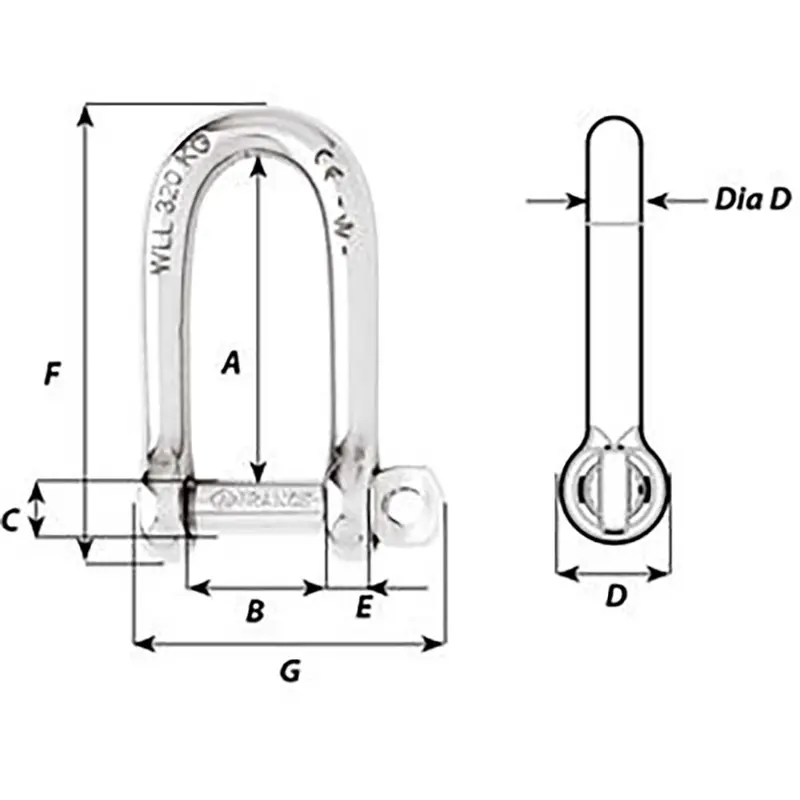

Dimensions (see 2nd image):

• A (inch) 1-19/64″
• B (inch) 15/32″
• C (inch) 15/64″
• D (inch) 15/32″
• D diameter (inch) 15/64″
• E (inch) 13/64″
• F (inch) 1-27/32″
• G (inch) 1-7/32″
