Wichard Black Watertight U-Bolt – 10 mm (25/64″) Dia, 90 mm (3-35/64″) Length – Model 65351W

Description

Black Watertight U-Bolt – 10mm Diameter – 25/64″ – 90mm Length – 3-35/64″

Features:

• Fully drop-forged product with high-quality stainless steel
• Outstanding working and breaking loads
• Complete water-tightness thanks to the resistant rubber collar (black color)
• Easy installation (no need to use a waterproof sealant)
• Delivered with bolts and counter-plate
• Max tightening torque: 36 nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Color: Black
• Working load: (lb) 7930 / (kg) 3600
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.483 / (g) 219

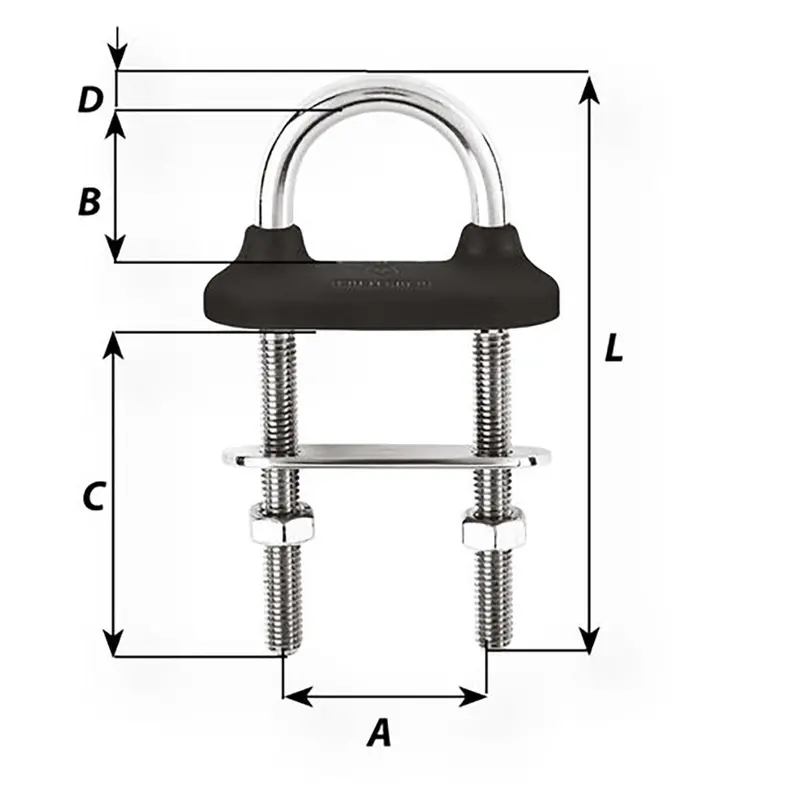

Dimensions:

• Length: (inch) 3 35/64″ / (mm) 90
• A: (inch) 1 37/64″ / (mm) 40
• B: (inch) 1 1/32″ / (mm) 26
• C: (inch) 1 49/64″ / (mm) 45
• D diameter: (inch) 25/64″ / (mm) 10

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
