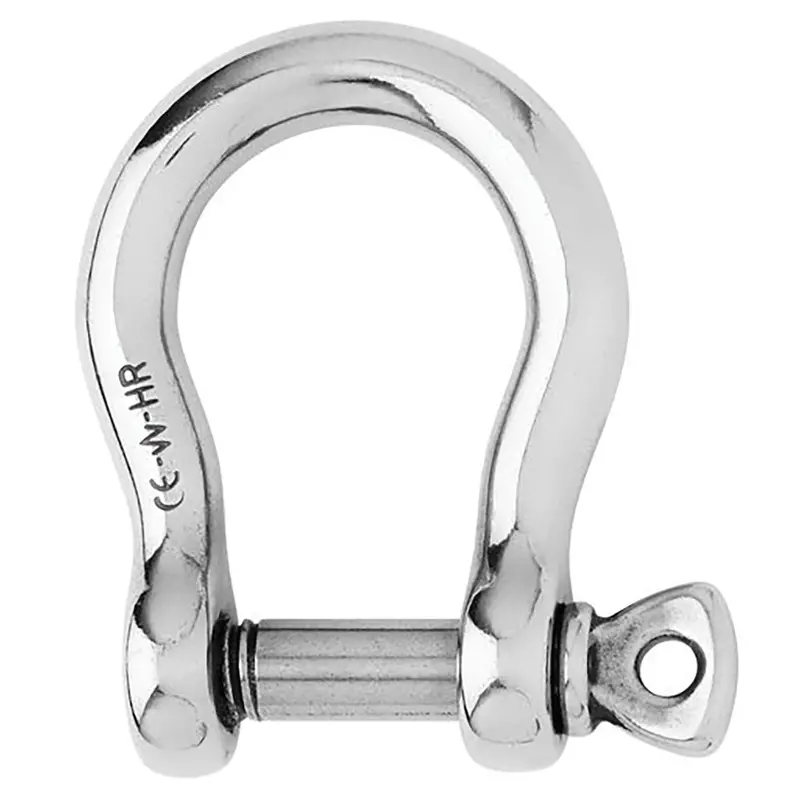

Wichard HR Bow Shackle – 10 mm Pin Diameter

Description

HR Bow Shackle – 10mm Pin Diameter

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 5820 / (kg) 2640
• WLL: (lb) 2640 / (kg) 1200
• Breaking load: (lb) 13220 / (kg) 6000
• Weight: (lb) 0.3 / (g) 136

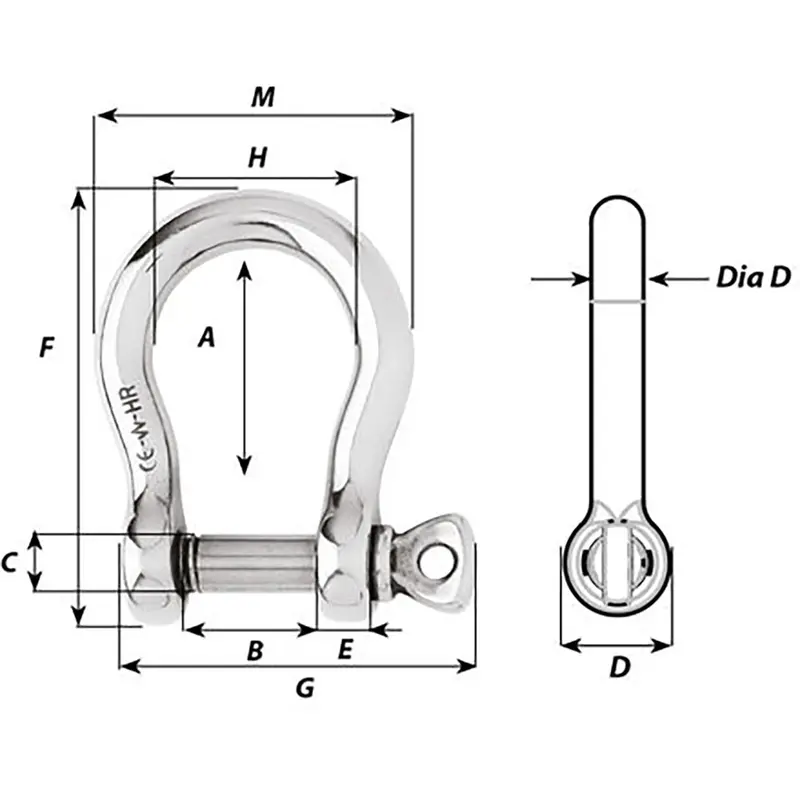

Dimensions:

• A: (inch) 1 27/32″ / (mm) 47
• B: (inch) 55/64″ / (mm) 22
• C: (inch) 25/64″ / (mm) 10
• D: (inch) 25/32″ / (mm) 20
• D diameter: (inch) 15/32″ / (mm) 12
• E: (inch) 23/64″ / (mm) 9
• M: (inch) 2 3/64″ / (mm) 52

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Quick Guide (pdf)
