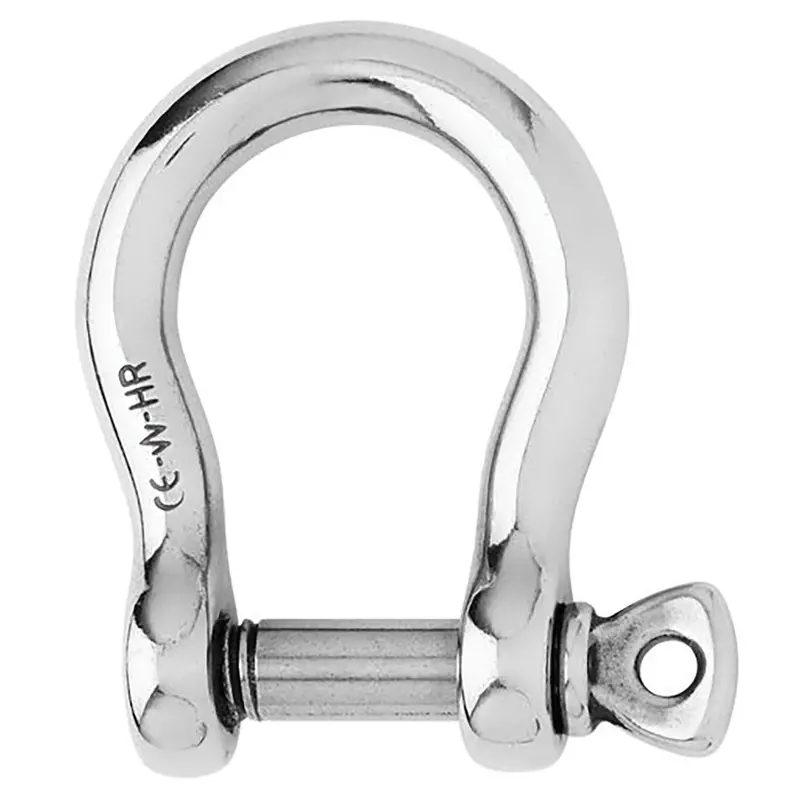

Wichard HR Bow Shackle – 20 mm (25/32″) Diameter – Model 11248W

Description

HR Bow Shackle – 20mm Diameter – 25/32″

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 19400 / (kg) 8800
• WLL: (lb) 12340 / (kg) 5600
• Breaking load: (lb) 61720 / (kg) 28000
• Weight: (lb) 2.229 / (kg) 1.011

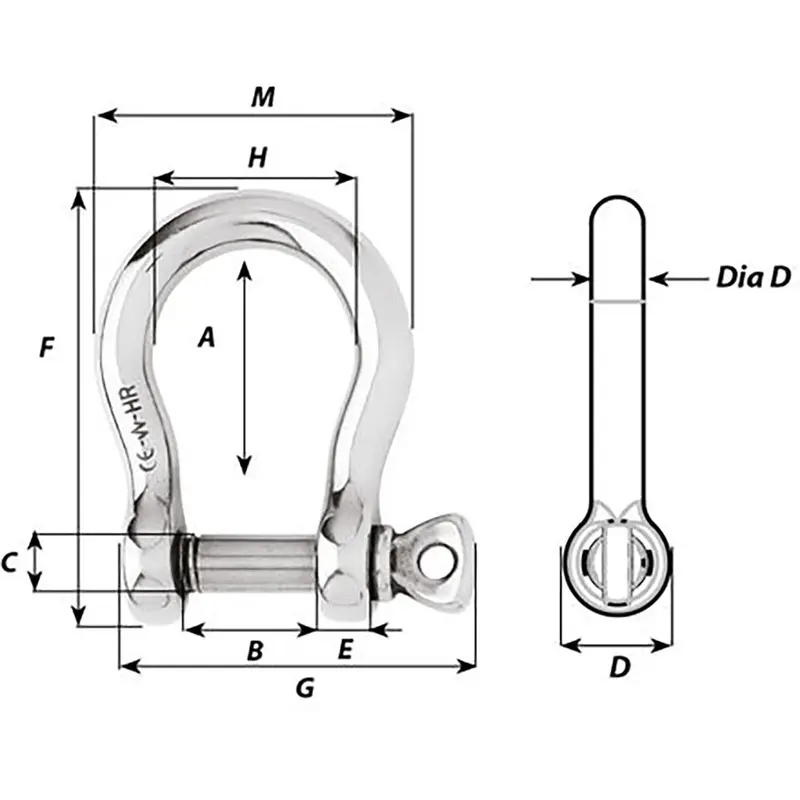

Dimensions:

• A: (inch) 3 5/32″ / (mm) 80
• B: (inch) 1 37/64″ / (mm) 40
• C: (inch) 25/32″ / (mm) 20
• D: (inch) 1 37/64″ / (mm) 40
• D diameter: (inch) 25/32″ / (mm) 20
• E: (inch) 45/64″ / (mm) 18
• M: (inch) 3 15/16″ / (mm) 100

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Quick Guide (pdf)
