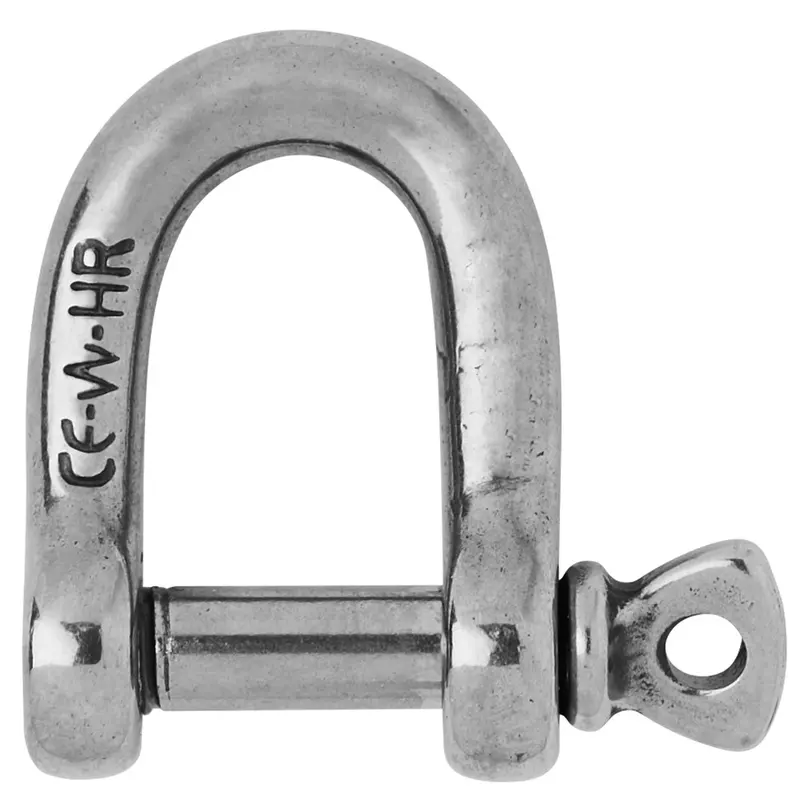

Wichard HR D-Shackle – 25/64″ Diameter Stainless Steel

Description

HR D Shackle – Diameter 25/64″

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications

• Applications requesting high loads
• Standard applications of the shackle
• Attachment applications: blocks, head
• Do not use it for mooring applications

Specifications:

• Materials HR 17.4 PH stainless steel grade
• Working load (lb) 5820
• WLL (lb) 2640
• Breaking load (lb) 13220
• Weight (lb) 0.225

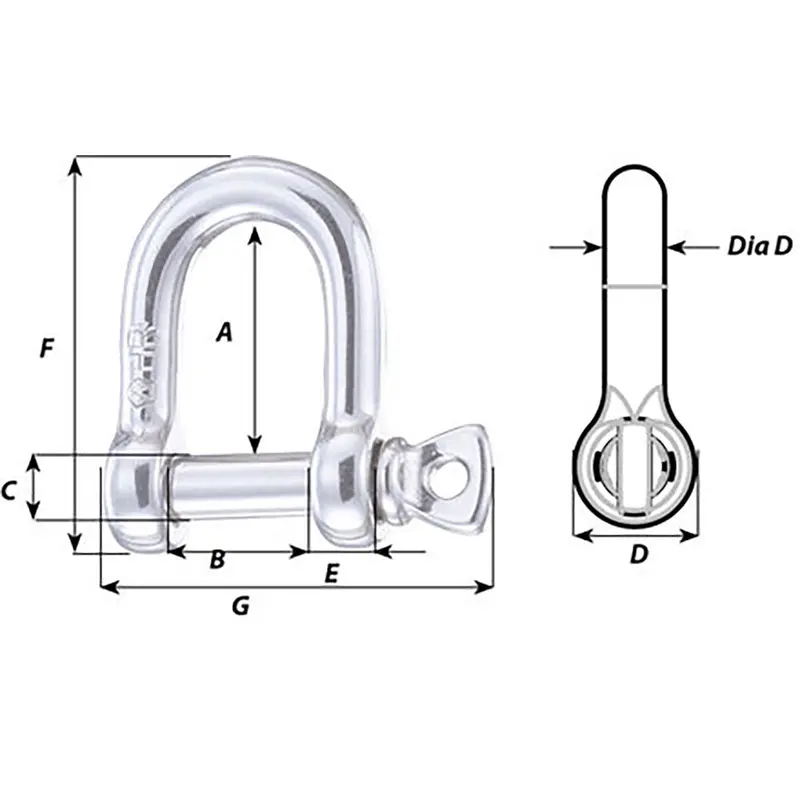

• A (inch) 1 19/64″
• B (inch) 25/32″
• D diameter (inch) 25/64″
