Wichard HR Quick-Release Snap Shackle with Swivel Eye – 110 mm (4-21/64″)

Description

HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64″

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye
• The opening is made by pulling the lanyard
• Perfect to attach one sheet or halyard
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 9250 / (kg) 4200
• Weight: (lb) 0.514 / (g) 233

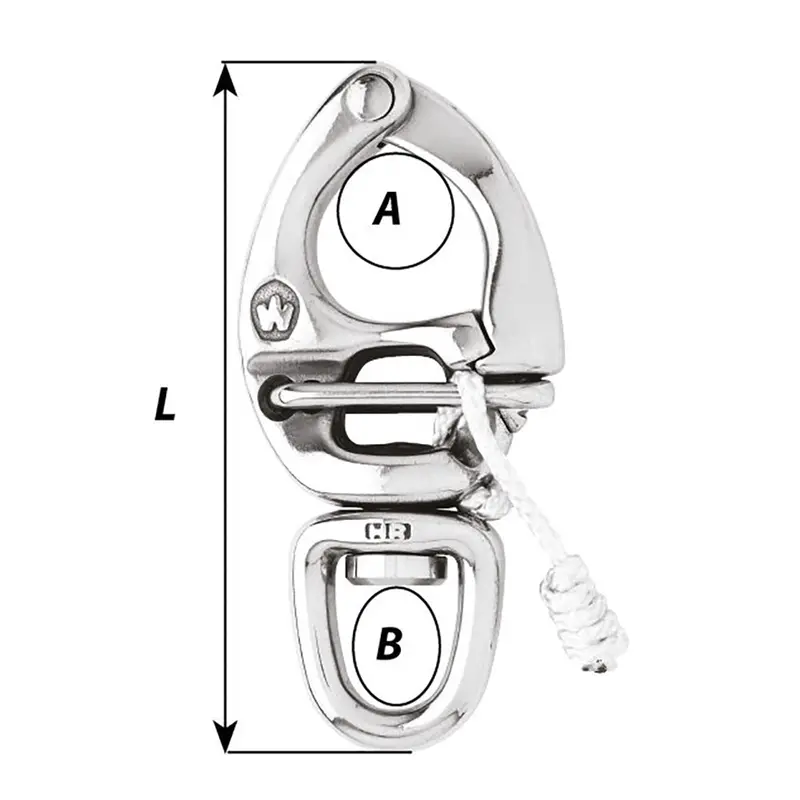

Dimensions:

• A: (inch) 63/64″ / (mm) 25
• B: (inch) 5/8″ / (mm) 16
• Length: (inch) 4 21/64″ / (mm) 110

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual
