Wichard HR Quick-Release Snap Shackle with Swivel Eye – 150 mm (5-29/32″)

Description

HR Quick Release Snap Shackle With Swivel Eye -150mm Length- 5-29/32″

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye
• The opening is made by pulling the lanyard
• Perfect to attach one sheet or halyard
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 11460 / (kg) 5200
• Breaking load: (lb) 19840 / (kg) 9000
• Weight: (lb) 1.208 / (g) 548

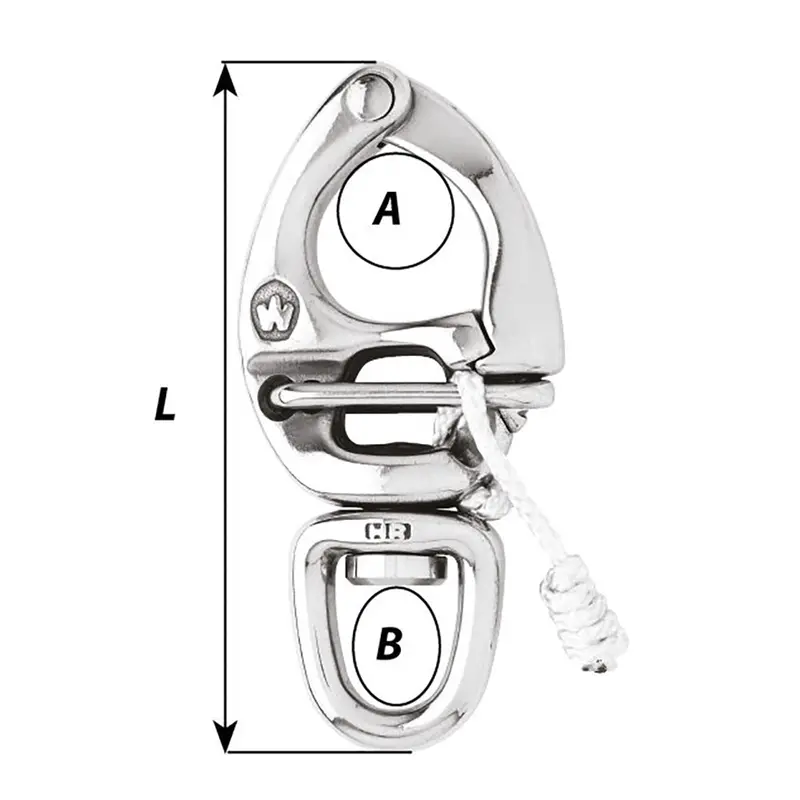

Dimensions:

• A: (inch) 1 11/32″ / (mm) 34
• B: (inch) 15/16″ / (mm) 24
• Length: (inch) 5 29/32″ / (mm) 150

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual
