Wichard M12 Eye Bolt – 175 mm Thread, 120 mm Overall Length

Description

Eye Bolt – M12 x 175mm – Length 120mm

Features:

• A complete range of single piece forged products for fastenings applications
• Outstanding working and breaking loads
• Available in different sizes
• Max tightening torque: 60 Nm

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 7710 / (kg) 3500
• Weight: (lb) 0.359 / (g) 163

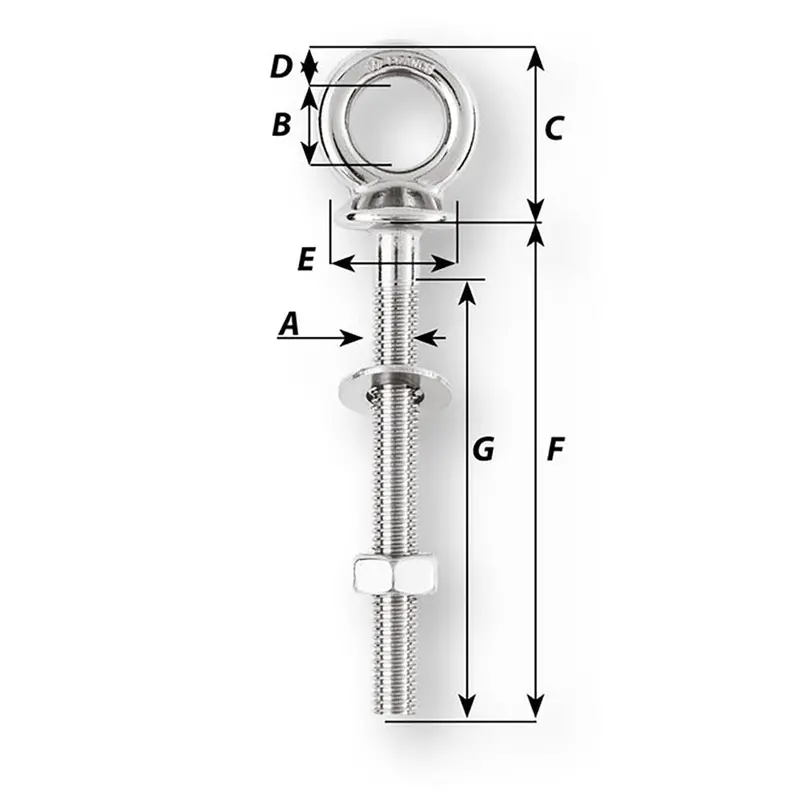

Dimensions:

• A: (mm) M12 x 175
• B: (inch) 45/64″ / (mm) 18
• C: (inch) 1 39/64″ / (mm) 41
• D: (inch) 5/16″ / (mm) 8
• E: (inch) 1 7/64″ / (mm) 28
• F: (inch) 4 23/32″ / (mm) 120
• G: (inch) 4 9/64″ / (mm) 105

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
