Xantrex HeartEcho Charge Controller Panel – Model 82-0123-01

Description

Convenient Dual Battery Bank Charging

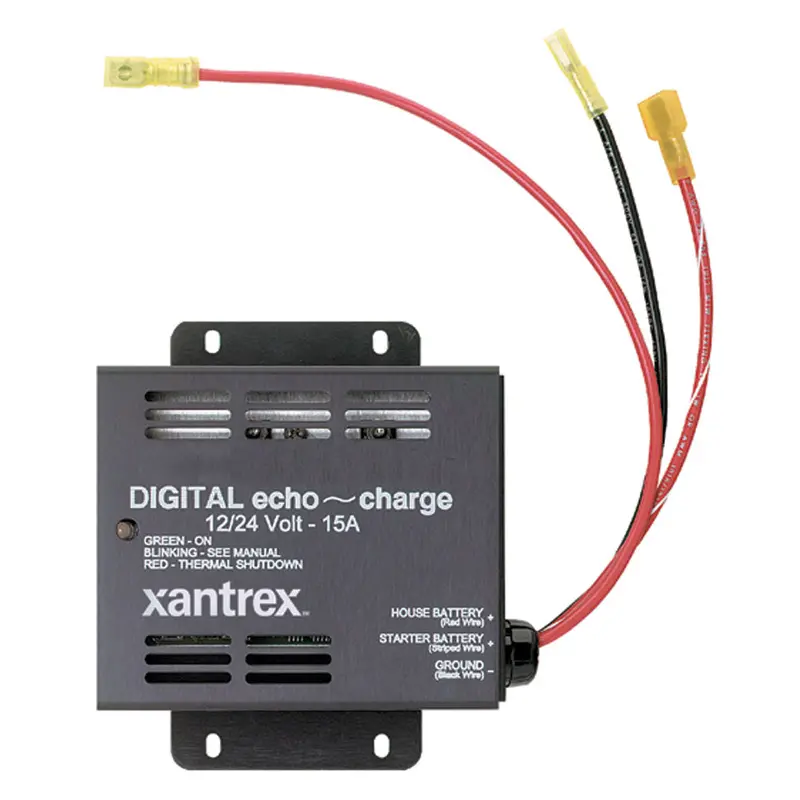

Xantrex digital echocharge (part#82-0123-01) is designed to charge auxiliary or starting batteries from an inverter/charger or other charging source with limited voltage drop. The Xantrex echocharge detects when the house battery bank is being charged and directs a portion of the charge current to auxiliary or starting batteries. The maximum charger current offered by echocharge is limited to 15 amps.
Product Features

• 15 A maximum charge current
• Automatically adjusts for 12 or 24 volt battery banks (both battery banks must be the same DC voltage and battery type)
• Automatically switches on/off without affecting the in-house battery bank or over-charging
• Utilizes excess current from the primary charging source
• Built-in thermal and over-current circuits
• Reverse polarity protection
• Easy three wire installation

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output – Amps: 15a
• Charging Banks: 1
• Portable: No
• Charger Input – Voltage: 120v
• Charger Output Voltage: 12/24v
• Box Dimensions: 3″H x 7″W x 10″L WT: 1.2 lbs
• UPC: 647912105722

Quick Guide (pdf)
Owner’s Manual (pdf)
