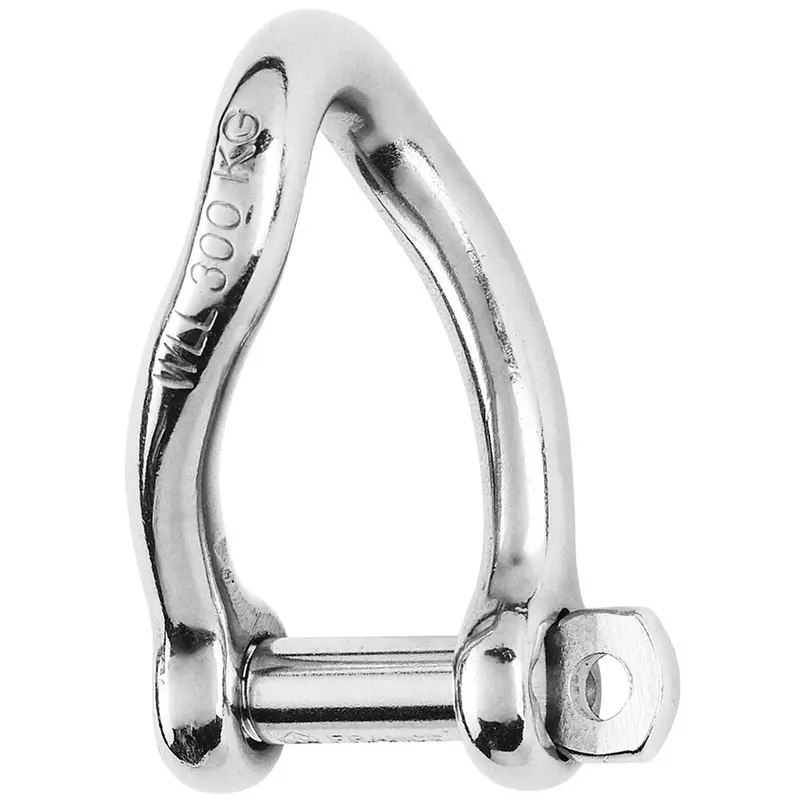

Wichard 6mm Self-Locking Twisted Bow Shackle (1/4″) – Model 1223W

Description

Self-Locking Twisted Shackle – Diameter 6mm – 1/4″

Features:

• Self-locking twisted shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Perfect for application where a  90° angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1320
• Breaking load (lb) 3300
• Weight (lb) 0.06

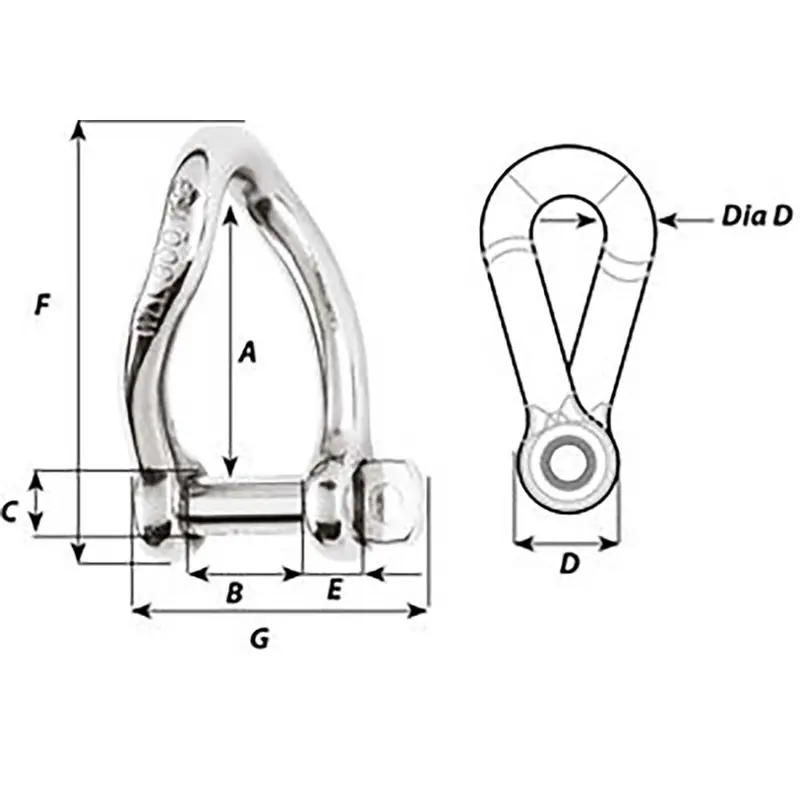

Dimensions (see 2nd page):

• A (inch) 1-3/16″
• B (inch) 15/32″
• C (inch) 15/64″
• D (inch) 15/32″
• D diameter (inch) 15/64″
• E (inch) 13/64″
• F (inch) 1-49/64″
