Wichard 8mm Self-Locking Twisted Bow Shackle (5/16″) – Model 1224W

Description

Self-Locking Twisted Shackle – Diameter 8mm – 5/16″

Features:

• Self-locking twisted shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Perfect for application where a 90° angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• Breaking load (lb) 6610
• Weight (lb) 0.148

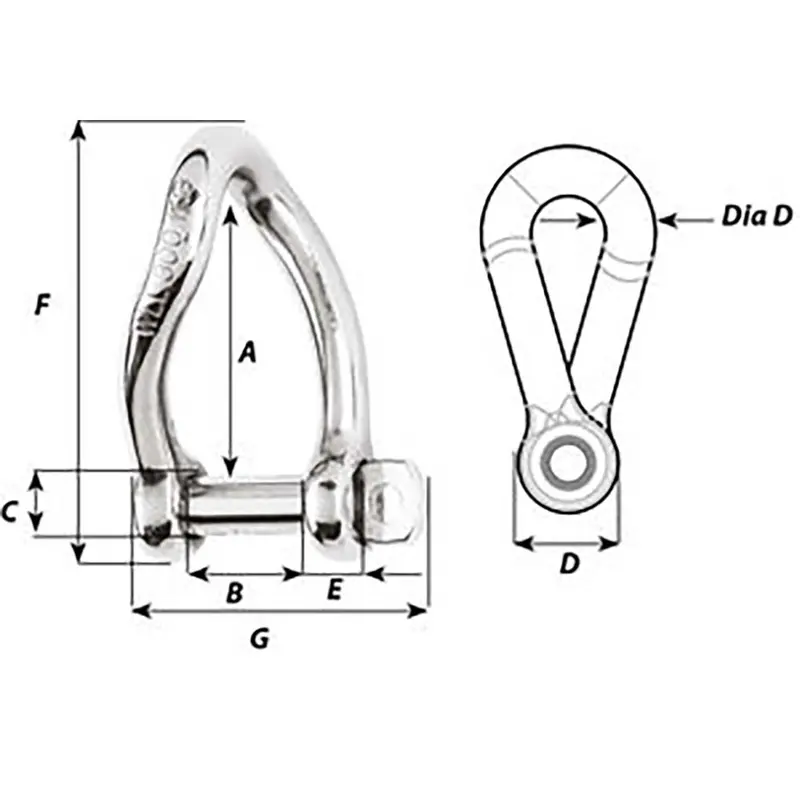

Dimensions (see 2nd image):

• A (inch)1-37/64″
• B (inch) 5/8″
• C (inch) 5/16″
• D (inch) 5/8″
• D diameter (inch) 5/16″
• E (inch) 9/32″
• F (inch) 2-23/64″
